Gold in Quantum Computing: Where It Helps—and Where It Does Not

Follow the signal path, not the headline

A quantum processor must generate, route and read extremely weak signals while limiting heat, loss, magnetic contamination and mechanical failure. Gold earns a place where its interface properties solve a specific problem. It does not make the entire machine “gold-based.”

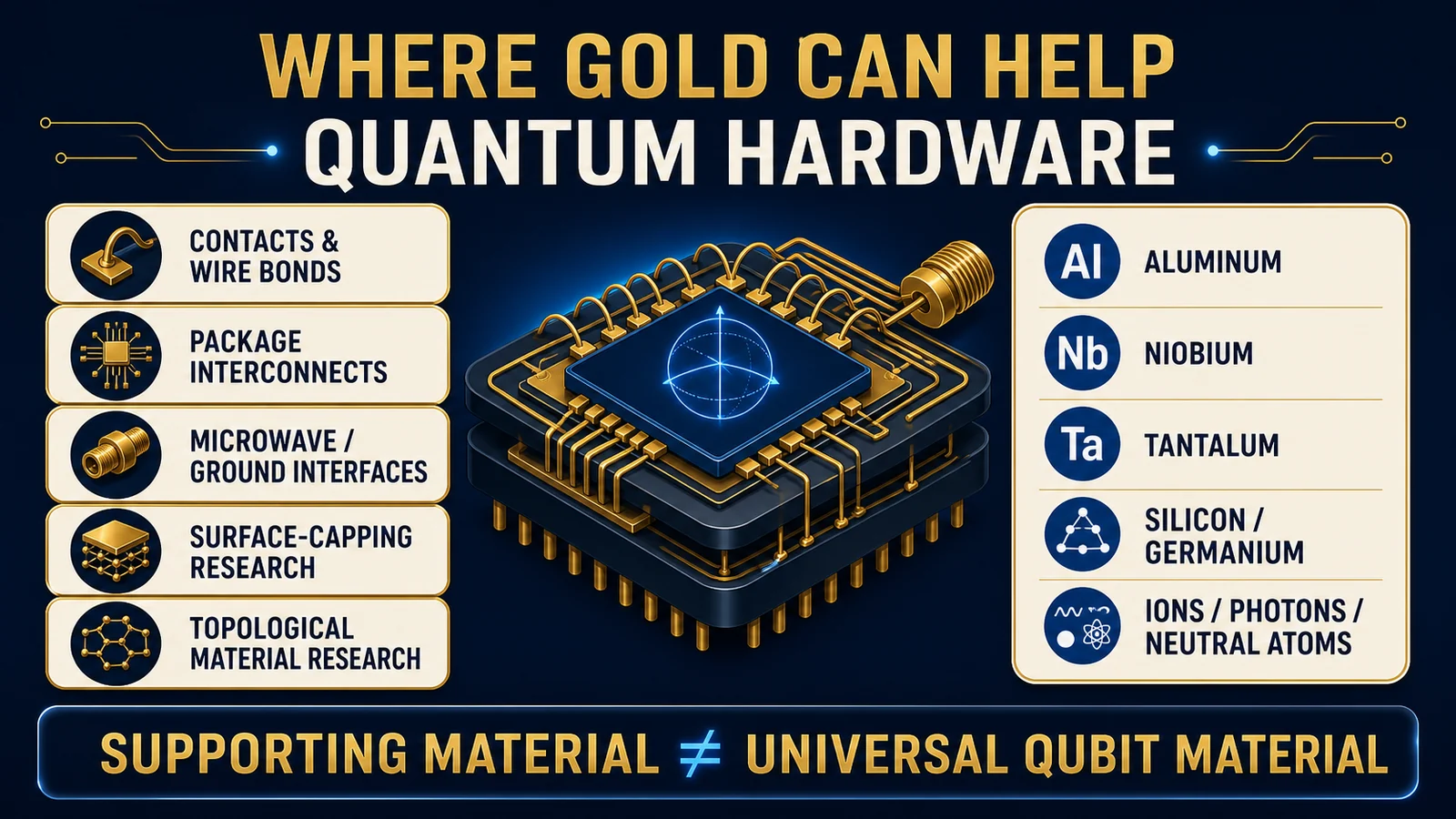

First separate the quantum platform

Wire bonds and contacts

Fine wire bonds connect a chip to a package. Gold is easy to bond, corrosion resistant and familiar in semiconductor assembly. Aluminum and copper are also used, and superconducting packages may prefer materials that reduce microwave loss or thermal mismatch. The correct choice depends on frequency, temperature, bond process and magnetic cleanliness.

A gold bond wire does not carry the quantum state by itself. It is one link between the active device and classical control/readout chain. Bond geometry can also influence unwanted modes and ground continuity.

Packages and interposers

The package mechanically supports the die, routes microwave signals, anchors heat and shields the circuit. A documented scalable package used a gold-plated copper interposer with spring-loaded contacts. Gold protected interfaces and enabled reliable connections; copper supplied bulk thermal and electrical performance.

Packages can include printed circuit boards, connectors, solder, indium bumps, gold/tin joints and plated housings. A material used at room-temperature connectors may be unsuitable next to a millikelvin qubit, so the phrase “quantum computer uses gold” needs a location.

Why gold is not the standard superconducting qubit metal

Superconducting qubits require materials that carry current without resistance and form low-loss microwave structures at operating temperature. Aluminum is widely used for Josephson junctions; niobium and tantalum families are important for resonators and electrodes. Ordinary gold remains a normal metal at these temperatures under typical conditions and can introduce dissipation if placed in the wrong field region.

Through the superconducting proximity effect, a thin normal metal touching a superconductor can inherit some superconducting behavior. That is a specific interface phenomenon, not a reason to call bulk gold a conventional superconductor.

Ultrathin gold as a surface cap

Surface oxides and defects can absorb microwave energy and shorten qubit coherence. DOE SQMS research compares capping layers intended to protect superconducting materials. A 2025 University of California, Riverside report described an ultrathin gold layer—about ten atoms thick—on niobium that improved surface quality while preserving superconducting behavior in the studied system.

This is promising materials research. A coating that performs on a test film must still integrate with junction fabrication, lithography, packaging, thermal cycling and full qubit measurements. It should not be generalized to all quantum platforms.

Gold surface states and Majorana research

Gold surfaces can host strong spin-orbit-coupled electronic states. Researchers have combined gold with superconducting materials and magnetic structures to search for signatures associated with Majorana zero modes, proposed building blocks for topological quantum computing.

These experiments probe fundamental physics. A reported signature is not a fault-tolerant topological qubit, and a gold surface in an experiment is not evidence that commercial processors will use bulk gold as their computational core.

Microwave and thermal design trade-offs

At cryogenic temperatures, every normal-metal path can conduct heat and dissipate energy. Engineers place attenuation and filtering at temperature stages, use superconducting cables where appropriate and minimize parasitic modes. Gold plating may improve a connector while increasing loss if it enters a resonant region.

Thermal conductivity also depends strongly on purity, dimensions, interfaces and temperature. “Gold conducts heat” is too broad to select a cryogenic part. The full stack—substrate, adhesion layer, plating, solder or bump and contact pressure—must be measured.

Materials must be evaluated as a stack

Gold thin films usually need an adhesion layer because gold bonds poorly to many oxides. Titanium, chromium or other interlayers can introduce their own magnetic, superconducting or loss behavior. Grain size, roughness and fabrication residues may matter more than the elemental name in a parts list.

At microwave frequencies, current crowds near surfaces and edges. A small patch of lossy normal metal in a high-field location can degrade quality factor, while a larger plated area in a field-free mechanical region may be harmless. Electromagnetic simulation and resonator measurements are therefore more informative than bulk conductivity alone.

Reliability through thermal cycling

Quantum processors repeatedly move between room temperature and cryogenic operation during development. Materials contract by different amounts, stressing bonds, bumps and interfaces. A package must retain contact resistance and alignment through cycles without particles, cracks or magnetic contamination.

Gold’s ductility can help selected interconnects accommodate strain, but soft metal can also deform under pressure. Qualification requires measured cycling, vibration and long-duration cryogenic performance in the actual assembly.

How much gold is in a quantum computer?

There is no standard answer. A quantum system includes the processor, cryostat, cables, amplifiers, control racks and conventional servers. Designs change rapidly, and vendors do not publish complete commodity bills of materials. Tiny bond wires and coatings may have high functional importance but low mass.

Any investment thesis should distinguish current research tools from deployed systems and account for substitution. Gold demand from quantum computing is presently better described as a specialty electronics question than a measurable global demand category.

Build the material context with gold’s electrical conductivity, gold in electronics, atomic structure, gold nanoparticles, future nanotechnology and gold as an element.

Bottom Line

Gold can improve selected contacts, bonds, packages and experimental surfaces in quantum hardware. It is an enabling interface material whose value depends on placement. Most quantum information is stored and manipulated in other materials or physical systems.
